Layoutmaster

Every time you ask the DOM a layout question, it has to render that layout before it can answer. It's like committing a crime while you're still contemplating it.

Ask too often and too fast (you will), DR. DOM will punish you, thrash your layout, crash your browser, and make your life miserable.

Very miserable.

When that happens, Layoutmaster will be your hero. It will come to your browser's rescue. Beating at its heart is a microkernel-driven layout engine that's so fast and so versatile, it can power an entire city. And it lets you do layout without paying taxes to DR. DOM ever again.

And you can do this as many times as you want, as fast as you want.

How fast? Picture this:

• 320,000 words.
• Four novels back to back.
• A MASSIVE 343,912px, 50-story high masonry wall.

This is the stuff that makes your new MacBook Pro M5 secretly weep behind its shiny armor. Yet the master casually lays it out in just...

882ms

on a...

Base Pixel 10 phone!

BAM!

See the Master in Action

Dancing Text

Live Interactive Demo

cosmiciron.github.io/layoutmaster

The Hero's Secret Origin

I hear you thinking — how is this possible?

Is this even legal?

Two words: game engines.

For decades, while layout technology stayed pretty much stale, game engine technology advanced enormously. Layoutmaster comes from that lineage. It is —

The world's first layout engine with game engine DNA.

That — is where the insane speed comes from.

Put simply, the master does not see text as sequential streams of characters or layout as a pile of complex conditionals. It sees actors, collisions, terrain, constraints, viewports, and deterministic updates.

Under its tiny browser API is a deterministic 2D spatial simulation engine for layout — content enters a "world", collides with constraints, flows through regions, avoids terrain, splits across viewports, and settles into exact coordinates.

That is where the master gets its superpowers.

The Six Mantras

form(), fit(), plan(), flow(), pour(), and produce()

These are the six mantras (APIs if you like, but the master prefers mantras) of the Layoutmaster. Do not be deceived by their overwhelming simplicity. These six verbs can solve a world of complex layout challenges and unlock possibilities you could only dream of before - precisely none of which browsers could do without rebuilding DOMs.

import {
  form,
  fit,
  plan,
  flow,
  pour,
  produce,
  exclusion
} from "@layoutmaster/layoutmaster";

I know, you count seven. We will get to that later. Just trust the master.

form - given space, how does this lay out, and how tall does it get?

The most fundamental question in layout. You have content and a width. You want to know what happens. form() gives you the pieces and the height.

const result = form("Layout is data.", {
  width: 320,
  fontFamily: "Georgia, serif",
  fontSize: 18,
  lineHeight: 1.4,
  direction: "auto",
  lang: "en"
});

console.log(result.height);
console.log(result.pieces);

fit - given bounded space, what fits, and what remains?

Boxes have lids. fit() is for when overflow matters: what consumed the space, what could not, and what needs to go somewhere else.

const result = fit(longText, {
  width: 360,
  height: 240
});

console.log(result.content.consumed.text);
console.log(result.content.remaining.text);

plan - given repeated intent, solve it without starting over.

Sometimes you are not asking one layout question. You are asking the same layout question again and again at different widths, heights, or targets. plan() captures the content and base intent once, then lets you call form(), fit(), or flow() from that plan.

const chapter = plan(longText, {
  fontFamily: "Georgia, serif",
  fontSize: 14,
  lineHeight: 1.45
});

const narrow = chapter.form({ width: 260 });
const wide = chapter.form({ width: 420 });

flow - given content that overflows, where does it continue?

Magazines and newspapers have known for centuries that content does not always fit in one box. flow() carries text through multiple regions and tells you exactly what landed where. Perfect for multi-column layouts, split panels, magazine spreads.

const result = flow(longText, [
  { width: 260, height: 320 },
  { width: 260, height: 320 }
]);

console.log(result.placements.map((p) => p.pieces));

pour - given a shape instead of a rectangle, fill it.

Not every layout surface is a box. pour() fills text like water inside ANY shape - circles, polygons, image silhouettes, arbitrary geometry.

const shape = exclusion.circle({ x: 40, y: 40, radius: 140 });
const result = pour(longText, shape, {
  width: 360,
  height: 360,
  fontSize: 16
});

console.log(result.pieces);

produce - given a document, give me pages.

Hand the master a document and it comes back with publishing-grade pages, each carrying its own pieces, line guides, and occupied height. One call. Every page solved.

const result = produce({
  elements: [
    { type: "p", content: "A document can become engine-authored pages." }
  ]
}, {
  width: 612,
  height: 792,
  margins: { top: 72, right: 72, bottom: 72, left: 72 }
});

console.log(result.pages.length);

Be Water, My Friend

Here is that "seventh" element.

Remember, the highest virtue is like water. Text in Layoutmaster is like water. It fills, it bends, it flows, and it navigates around any obstacle you place in its path. Those obstacles are called exclusions - and they are one of the master's finest tricks.

Exclusions are reusable spatial geometry. Build them from primitives or sample them directly from image and video alpha channels. Pass them as obstacles to form() and fit(), or flip them inside out and use them as containers for pour(). They are serializable and replayable - compile the geometry once, use it everywhere, store it as JSON, replay it without the original source.

exclusion.circle({ x, y, radius, gap });
exclusion.rect({ x, y, width, height, gap });
exclusion.ellipse({ x, y, width, height, gap });
exclusion.polygon({ x, y, points, gap });
exclusion.assembly({ x, y, parts, gap });
exclusion.fromAlphaChannel(alpha, width, height, options);
exclusion.fromJSON(savedData, options);

Assemblies are crude composed fields: circles, rectangles, ellipses, polygons, and line/capsule helpers merged into one obstacle. That makes them a good fit for stick figures, mascots, diagrams, dragons, and other programmable shapes where speed matters more than perfect contours.

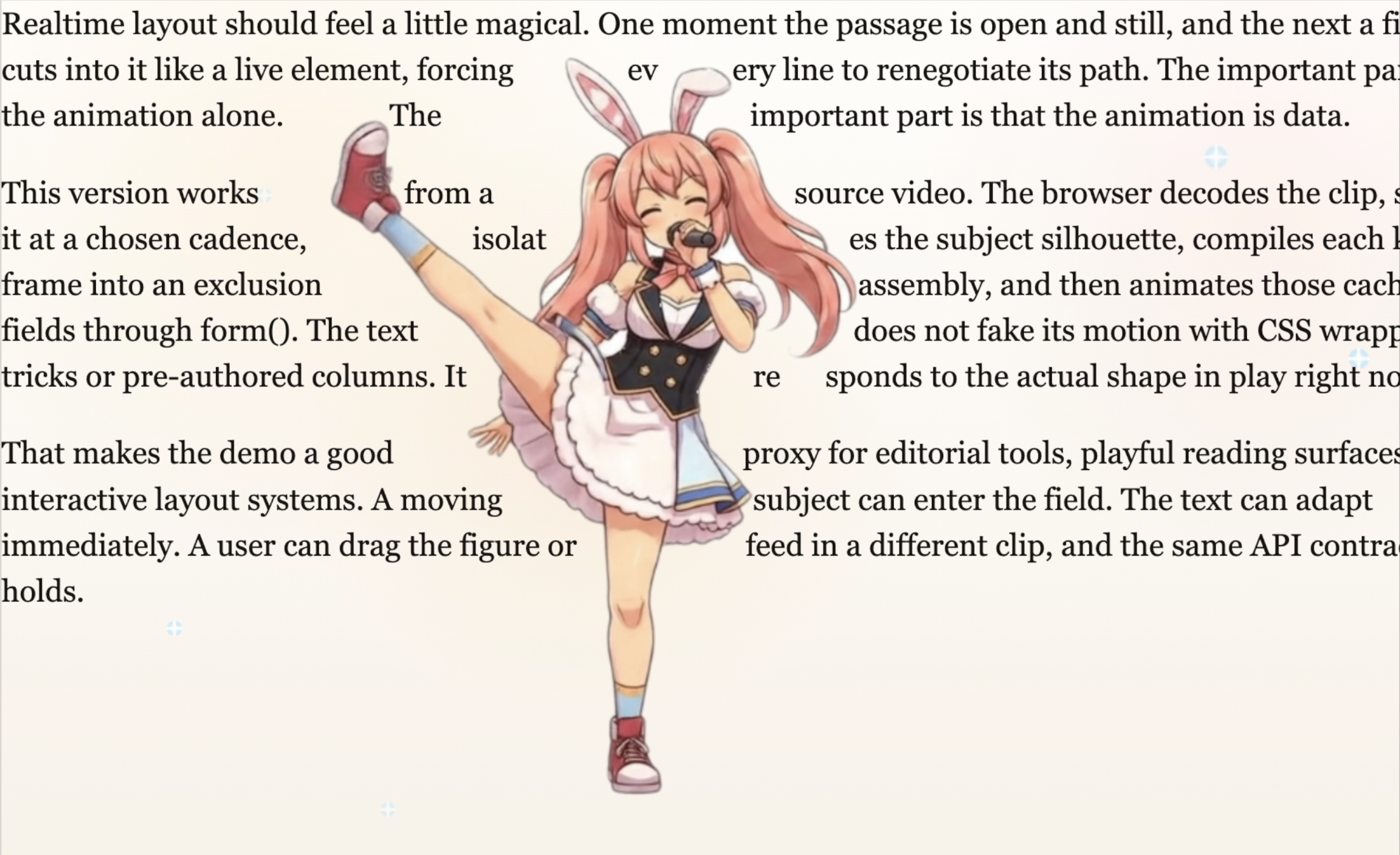

The dancing text demo builds exclusion assemblies from video frames and animates them through form() with smooth framerate. The text renegotiates its path on every frame around the actual shape of the figure in motion.

No CSS tricks. No pre-authored columns. Uses 1% of your CPU. No browser screaming at you in distress.

Performance

Browser layout is actually very fast. Those who claim their stuff is 600 times faster are lying, big time.

But Layoutmaster is just as fast, creating usual layouts just as beautifully and quickly as the browser would, so you can use it as a replacement for browser DOM-based layout on regular stuff without guilt.

And mind you, the browser's layout engine is written in C++ with direct access to font machinery and rendering internals. So the mere fact that the master hangs with it nicely tells you it is punching above its weight.

But David would not have become a legend if all he had done was throw one rock.

The Atlas Test

The HTML Atlas demo takes a long manuscript (~80,000 words) and turns it into a wall of real HTML pages. Not canvas. Not screenshots.

Searchable, selectable, highlightable text.

Layoutmaster:
334 page(s) | 6838 piece(s) | produce 363.0 ms | render 10.0 ms

DOM + W/O:
364 pages | 6484 piece(s) | paginate 3115.0 ms | wall 17.0 ms

This is what happens when the task becomes a little more serious than just wrapping text into paragraphs:

• pagination
• headers and footers
• widow/orphan control
• on-the-fly page number calculations

The master is more than 8 times faster yet it is barely in second gear. Its VMPrint Engine is made for stuff ten times more complicated than this. But let's not go there - it would turn into an unfair fight.

The Resize Test

This test is not about a benchmark table. It is about what happens when the layout has to keep changing while the user is changing the available space. So I recorded it.

Watch the resize stress test:

The test is a masonry wall made from the same book content. Each chapter becomes a live card.

Layoutmaster uses fit() to solve the text pieces, packs the cards, and paints the returned geometry. The browser version uses ordinary DOM/CSS flow.

As shown in the video, Layoutmaster keeps recomputing the whole wall in roughly the same bounded range - around 400ms for the 300+ card case - and snaps into the new geometry as the window changes.

Resize it slowly, resize it quickly, resize it violently: the solve remains explicit. Given a width, the engine returns a wall.

The browser version does it in 4,000ms, which isn't so bad. Then it falls apart when you grab its window and resize. The layout goes into a frenzy and cannot settle until some 20+ seconds later. Try harder, it can take even minutes to recover.

That's the whole point — when layout becomes highly dynamic and intense, it can overwhelm the browser. That's why you should leave the job to the specialist —

Let Layoutmaster handle the layout for the browser, and let the browser handle everything else.

Footprint

At this point you probably picture the master as a burly man smoking a cigar and holding a Gatling gun torn from a tank.

Nope.

The package packs to about 246 kB on npm - 179 KiB gzip at runtime, the embedded engine included.

No other dependencies.

So like the master (the other one) says:

Smaller in number are we, but larger in mind.

Install

npm install @layoutmaster/layoutmaster

Layoutmaster is specifically built for the browser so it requires the Canvas API to be available. If you need non-browser solutions, head over to the sibling project VMPrint.

Repo Map

• src: the public package surface
• engine: the embedded engine copy built locally
• demos: browser demos and showcases
• demos/helpers: copyable helper source used by demos
• documents: API, rendering, helper, and product notes
• CONTRIBUTING.md: local setup and project boundaries

Useful reading:

• API reference
• Structured content
• Painting pieces
• Piece contract
• Helpers

Run The Demos

npm run serve

The server starts at http://127.0.0.1:4173/. Open http://127.0.0.1:4173/demos/ for the demo index.

The public demo site runs the published npm package through an ESM CDN, so it matches what package consumers actually install.

Current demos:

• form: width-bounded fragments and returned pieces
• fit: bounded layout with consumed and remaining content
• flow: continuation through multiple targets
• bidi: native browser BIDI rendering beside Layoutmaster's solved pieces
• browser-fonts: browser font-scope probe with DOM text beside Layoutmaster pieces using the same CSS stack and native fallback
• pour: text contained inside a primitive shape
• pour-image: text contained inside image-derived alpha geometry
• pieces: minimal piece and baseline inspection
• exclusion: live primitive exclusion fields
• exclusion-assembly: animated primitive assembly rig with hideable visual layer
• exclusion-image: image alpha as wrap geometry
• html-atlas: produce() rendered as a searchable, selectable paginated atlas
• html-atlas-dom: DOM pagination baseline with widow/orphan pass enabled
• masonry-book: chapter cards packed from Layoutmaster fit() pieces
• dancing-text: animated exclusion fields from video frames

The demos use browser import maps, so serve them from the repo root. Opening the files directly from disk won't work well.

Helpers

The master keeps its package small. Browser image sampling, video frame extraction, and HTML piece painting live as source files under demos/helpers. They are official examples, not package exports.

Copy them when they help. Change them when your app needs something different. The deal is simple: helpers may prepare explicit inputs or paint returned results. They do not get to make up layout geometry. That is the master's job.

The One Rule

Every layout decision belongs to the engine.

• engine owns layout
• wrapper owns normalization and result projection
• helpers own adapter glue
• demos own inspection and presentation
• applications own rendering

If browser code starts inventing line breaks, baselines, page geometry, or continuation behavior, it has wandered into engine territory. Gently escort it back.
